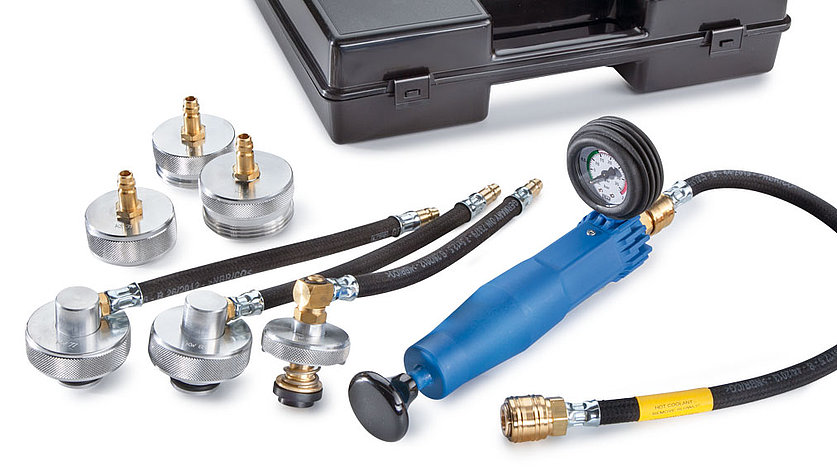

Cooling system test case for cars with 6 adapters

Description

The cooling system test kit for passenger cars is ideal for pressure testing, leak testing, and leak detection on the cooling systems of modern passenger cars from numerous European and Asian manufacturers. The cooling system tester with a quick-connect coupling allows for the rapid connection of universal and individual adapters. The integrated drain valve enables the test pressure to be released safely and in a controlled manner.

The ergonomically shaped pump body is made of glass-fiber-reinforced plastic and is designed for daily workshop use. The NG 52 precision pressure gauge with a robust rubber protective cap features a dual-range scale (0–2.5 bar / 0–36 psi) and allows for precise monitoring during testing. The selection of radiator adapters / coolant adapters is based on the vehicle generations of recent years from European and Asian vehicle manufacturers. In total, the test kit includes six connectable adapters, three of which are angle adapters (KW..) for testing situations with limited space in the engine compartment.

Vehicle compatibility – Cooling system test kit for passenger cars

Below are the adapters included in the test kit with their corresponding vehicle coverage.

Adapter KS 31

Alfa Romeo – Cooling system adapter for:

• Spider

Bentley – Radiator adapter / coolant adapter for:

• Arnage

Chevrolet – Cooling system adapter for:

• Aveo
• Captiva
• Epica
• HHR
• Kalos
• Lacetti
• Matiz
• Nubira
• Rezzo

Daewoo – Radiator adapter for:

• Evanda
• Kalos
• Lacetti
• Matiz
• Nubira
• Tacuma

Ford – Cooling system adapter for:

• Cougar
• Escort (from 1997)
• Fiesta (from 1995)
• Focus (until 2007)
• Fusion (from 2003)
• Ka (from 1996)
• Mondeo (GBP, BAP, from 1993)
• Scorpio
• Sierra B (from 1992)

Jaguar – Radiator adapter / coolant adapter for:

• S-Type

Land Rover – Radiator adapter for:

• Discovery
• Range Rover (P35A, from 1994)

Opel / Vauxhall – Cooling system adapters for:

• Agila (until 2006)
• Calibra
• Corsa B + C
• Frontera (until 1998)
• Meriva A (until 2010)
• Omega
• Tigra
• Vectra B
• Zafira (until 2004)

Rover – Radiator adapter for:

• Metro Diesel

Saab – Cooling system adapter for:

• 900 (from 1994)

Skoda – Radiator adapter for:

• Felicia (from 1999)

Tesla – Cooling system adapter for:

• Roadster

Adapter KS 38

Seat – Cooling system adapter for:

• Arosa
• Cordoba
• Ibiza (from 1999)
• Leon (from 2000)
• Vario

Skoda – Radiator adapter for:

• Models (from 1997)

VW – Cooling system adapter for:

• Caddy (until 1996)
• Golf III (from 1991)
• Jetta (from 1991)
• Passat (until 1996)
• Polo (until 1996)
• T4
• Vento (from 1993)

Adapter KS 65

Audi – Cooling system adapter for:

• A1
• A2
• A3
• A4
• A5
• A6
• A7
• A8
• e-tron
• Q2
• Q3
• Q4
• Q5
• Q7
• Q8
• R8
• TT

Bentley – Radiator adapter for:

• Bentayga
• Continental
• Flying Spur

Cupra – Coolant adapter for:

• Ateca
• Born
• Formentor
• Leon
• Tavascan
• Terramar

Ford – Cooling system adapter for:

• Tourneo (2022, VW Caddy)

Lamborghini – Cooling system adapter for:

• Gallardo (from 2003)
• Huracán
• Revuelto
• Urus

Porsche – Cooling system adapter for:

• Cayenne (from 2002)
• Panamera
• Taycan

Seat – Radiator adapter / Coolant adapter for:

• Altea
• Arona
• Ateca
• Exeo
• Mii
• Tarraco
• Toledo (from 1998)

Skoda – Cooling system adapter for:

• Citigo
• Enyaq
• Fabia
• Kamiq
• Karoq
• Kodiaq
• Octavia
• Praktik
• Roomster
• Scala
• Superb
• Yeti

VW – Radiator adapters for:

• Amarok I (2010 to 2022)
• Arteon
• Bora
• Caddy (from 1997)
• Crafter
• Eos
• Fox
• Golf IV ff. (from 1997)
• ID.3
• ID.4
• ID.5
• ID.7
• Jetta (from 1997)
• LT 28/30/35
• Lupo
• New Beetle
• Passat (from 1997)
• Passat CC
• Phaeton
• Polo (from 1997)
• Scirocco (from 2008)
• T-Roc / T-Cross
• T5
• T6
• T7
• Taigo
• Tiguan
• Touran
• Touareg
• Up!
• Vento (from 1998)

Adapter KW 77

Opel / Vauxhall – Radiator adapter / Coolant adapter for:

• Ampera-e
• Zafira (from 2005)

Tesla – Cooling system adapter for:

• Model S
• Model X

Adapter KW 85

Ford – Cooling system adapter for:

• C-Max
• Galaxy (from 2006)
• Grand C-Max
• Kuga
• S-Max
• Tourneo

Jaguar – Cooling system adapter for:

• I-Pace

Adapter KW 90

Nissan – Cooling system adapter for:

• Forklift

Special features of the cooling system test kit

• Cooling system test kit for passenger cars with 6 adapters
• For pressure testing, leak testing, and diagnosing leaks in the cooling system
• Quick-connect coupling for universal and individual adapters
• Drain valve for safe pressure relief
• Fiberglass-reinforced plastic construction with ergonomic pump body design
• Precision pressure gauge NG 52 with robust rubber protective cap
• Dual-range scale 0…2.5 bar / 0…36 psi
• Three angle adapters (KW..) for testing situations with limited space in the engine compartment
• Particularly suitable for European and Asian vehicle manufacturers

Scope of delivery

• 1 cooling system tester TVU 139/1
• 1 flexible connector FZ 100K
• 6 test adapters (KW 90, KW 85, KW 77, KS 65, KS 38, KS31)
• 1 solid plastic case
