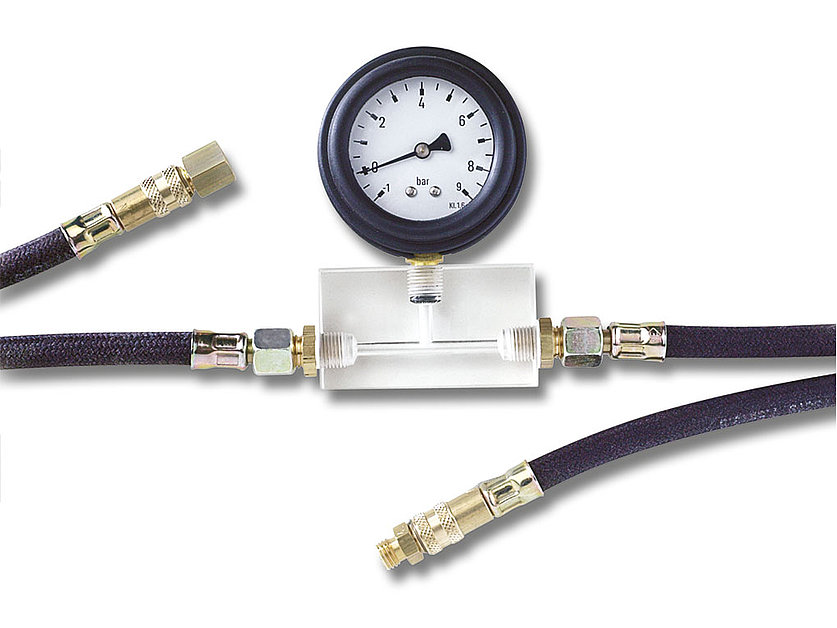

Fuel feed pump tester (-1...+9 bar)

Description

• For the fast, simple and professional testing and diagnosis of the fuel feed pump of petrol and diesel engines
• The test includes the following options:
  • Fault in the fuel supply
  • Fault on overflow valve
  • Feed pump fault
  • Leaking pipes / pressure loss
  • Air bubbles in the system
• Test possible while driving
• Can be used almost universally in combination with other adapters
• The flow of petrol can be closely observed through the plexiglass body (identification of bubbles)
• Pressure and vacuum testing from -1 to +9 bar
• Easy assembly and disassembly thanks to quick coupling system
• All individual parts are available as spare parts
• Extensive assortment of adapters as accessories.

Scope of delivery

• 1 vacuum pressure gauge NG 63, measurement range -1...+3 bar
• 2 hoses, each 3.00 m
• 1 adapter M12x1.5 (external thread)
• 1 adapter M12x1.5 (internal thread)
• Delivered in a box

spare parts

• ET 277 (121173) compound gauge DS 63 mm,
• range -1...+3 bar with protective rubber cap
• ET 438 (121472) compound gauge DS 63 mm,
• range -1...+9 bar with protective rubber cap
