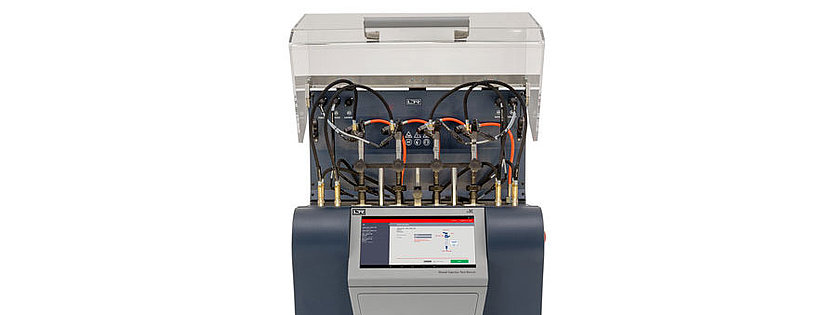

Test bench for 4 CR Diesel-Injector - 2800 bar high-end version (water cooled)

Description

• Standalone Motor Driven Diesel CRi (4 Injectors) Test Bench
• For professional and automated testing of up to 4 Common Rail injectors
• Suitable for all common injectors of common rail diesel systems (Bosch, Delphi, Denso, Siemens / VDO / Continental, HTC, Piezo; CDI, TDI, HDI...)
  • Diesel Passenger cars
  • Diesel Light duty vehicles
  • Diesel Medium & Heavy-Duty Commercial, Agriculture and Industrial Equipment
  • Diesel Heavy Duty Marines
• Future-proof, EU6 Systems Testing and Coding
  e.g. for NCC and VCC technology, CRI3-25, CRI3-27, Denso I-Art (6-pin) ....
• VDO Authorized Test Bench
• Injector coding function VDO IIC, Delphi C2i and C3i, Bosch IMA and ISA and Denso QR (optional)
• Xtremely Fast Testing Times without any Compromise
• 3000Bar Capable Test Bench
• High efficiency due to fast and fully automatic operation and test run as well as lifetime updates for software and database
• Over 2000 injector reference/test values, including free update function
• Simple operation through Android operating system with intuitive user interface and touch screen operation as well as one clamping for all injectors
• Cloud X - Cloud Based Technology
• Remote Sync & Backup
• Inspection/test scope:
  • Dynamic spray pattern test
  • Check of the injector reaction time
  • Injection quantity measurement full load
    • Half load
    • Emission
    • Low load
    • Pre- and post-injection
  •  Injection quantity measurement with rising test curve
  • Test of the nozzle opening pressure
  • Test for leakage / tightness test
  • Static leakage quantity test
  • Electrical test of Ω, F, H


• Technical data:

• Mains connection 100–240 V~ / 1 Ph / 50 - 60 Hz (+/-10%))
• System pressure max.: 2800 bar
• System pressure source: Motor
• Cooling: Water
• Measurement sensors: 2
• Calibration Oil / Tank Capacity: ISO 4113 / 30 l
• Touchscreen: 15"
• Dimensions: (D x W x H) / Weight: 120 x 80 x175 cm / 325 kg

Equipment

• DISU_Z_RSP Nozzle response time sensor, for all brands, for 7–9 mm nozzles, pressure approx. 2 bar, measurement range 50 … 4000 μs
• DISU_Z_PIRV.CB Piezo injector return valve set, Continental / Bosch (2/10 bar)
• DISU_Z01 Test liquid, content 5 l; USB 01_EU (130603_2) Ultrasonic cleaning basin
• Adapters for injectors
  • CRS.01 > Iveco / Cummis / Dodge / Duramax (Bosch 120- 184/ 018/ 114/ 032/ 007/ 161)
  • CRS.02 > Iveco / Cummis (Bosch 120- 125/ 070)
  • CRS.03 > KHD / Deutz (Bosch 120-067)
  • CRS.04 > Renault (Bosch 120-003)
  • CRS.05 > Fuso Trucks (Denso 6M60)
  • CRS.06 > Fuso Trucks (Bosch 6M70)
  • CRS.07 > Cummis (Cummins 4954927)
  • CRS.08 > Duramax (Denso 5730)
  • CRS.09 > John Deere (Denso 0540)
  • CRS.10 > Ford 6.4 l Power Stroke (Siemens 8C3Z-9E527-A)
  • CRS.11 > MAN (Bosch 120- 030/ 218/ 100/ 217/ 063)
  • CRS.12 > KHD / Deutz (Bosch 120-065)
  • CRS.13 > MTU (Bosch 920189903 [3894783, Y431K05210])
  • CRS.14 > Denso (Denso 0800 05C0064)
  • CRS.15 > MTU-L'Orange (L'ORANZ 934759 [VTO-G266W48B])
  • CRS.16 > Iveco (Bosch 120-054)
  • CRS.17 > MAN (Bosch 120- 044/ 053/ 045/ 162/ 098)
  • CRS.18 > Iveco (Bosch 120-157)
  • further adapters on request.
