Special tools for air conditioning from Autotestgeräte Leitenberger

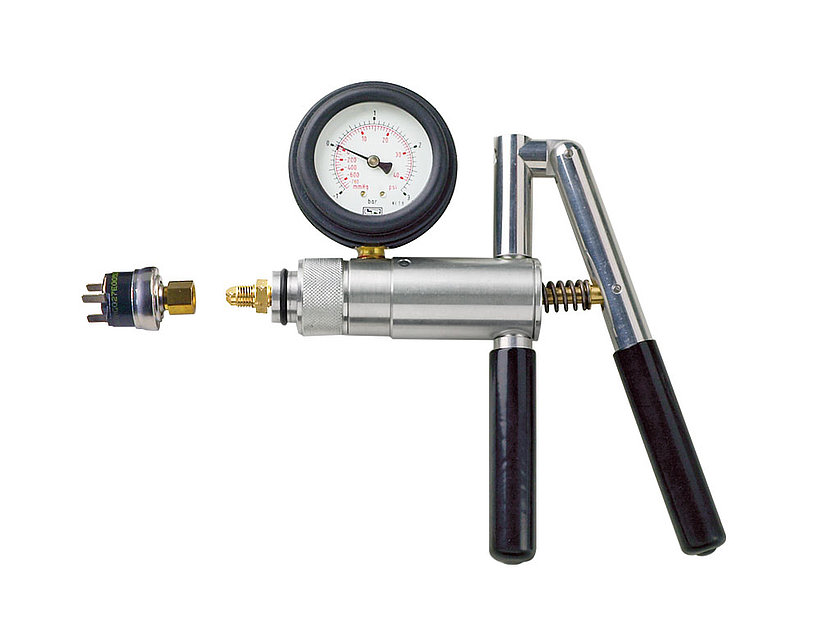

Pressure and vacuum pump for mobile testing of low pressure switches

Premium Produkt Auszeichnung

item number :
HV 90.2 (060107_2)
GTIN :
4251712716925

inquiry
shop

Description

Rubber-protected vacuum pressure gauge NG 63
Measuring range -1... +3 bar / 45 psi
Double band scale with fine graduation.
Connection external thread 7/16"-20 UNF
Test options:
- Determination of the switching points
- Determination of the switch-on and switch-off point or the switching differential
Low pressure switch applications in:
- Refrigeration and air conditioning systems
- Pneumatic brake systems (trucks)
- Oil pressure switches

Equipment

HVA 01 (060901) adapter from 7/16"-20UNF to 3/8"-24UNF (female thread)
HVA 02 (060902) adapter from 7/16"-20UNF to 3/8"-24UNF (male thread)
HVA 03 (060903) adapter from 7/16"-20UNF to M 12x1.5 (male thread)
HVA 04 (060905) adapter from 7/16"-20UNF to M 12x1.5 (male thread)
HVA 05 (060906) adapter from 7/16"-20UNF to M 12x1.5 (male thread)
HVA 06 (060907) adapter from 7/16"-20UNF to M 10x1.25 (male thread)
HVA 07 (060908) adapter from 7/16"-20UNF to 7/16"UNF (male thread)
