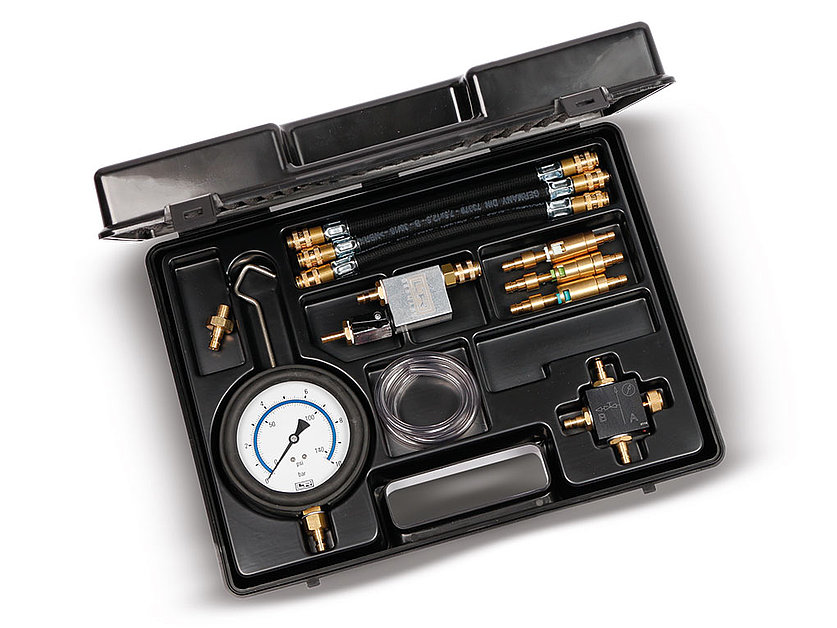

Fuel low pressure diagnostic kit 12 adapters

Description

• For quick, easy and professional testing and diagnosis of mechanical and electronic fuel injection systems
• Also suitable for many European and Asian vehicles with the following injection systems due to the special adapter combination: K-Jetronic, KE-Jetronic, L/LH-Jetronic, Motronic, MPI, HMPI, EFI, DIGIFANT, Mono-Jetronic, Opel-Multec, Weber CFI
• Can be used almost universally in combination with other adapters
• The intermediate, adjustable 3-way valve between the warm-up regulator and fuel distributor allows for the system and control pressure to be checked and the injection system to be tested for leaks
• Measurement range 0 … 10 bar / 0 … 140 psi, fine graduation 0.1 bar
• Precision pressure gauge NG 100 with robust rubber protection cap and mounting hook. Suitable for European and Asian vehicles. Other pressure gauge measurement ranges on request
• Optionally available with ISO calibration certificate
• All individual parts are available as spare parts
• Extensive assortment of adapters as accessories.

Scope of delivery

• 1 pressure gauge NG 100, MB 0 … 10 bar / 0 … 140 psi
• 1 3-way valve; 3 hoses of 0.25 m each, with quick coupling on both sides
• 12 DPAK adapter (coupling connection)
  • DPAK 3; M8x1 (external thread);
  • DPAK 4; M12x1.5 (external thread)
  • DPAK 5; M12x1.5 (internal thread)
  • DPAK 6: M8x1 (internal thread)
  • DPAK 7; Ø 6 mm, Ø 8 mm (fuel hose, 2-piece)
  • DPAK 8; M10x1 (external thread)
  • DPAK 9; M10x1 (external thread, angle adapter)
  • DPAK 11; M8x1 (internal thread)
  • DPAK 12; M14x1.5 (internal thread)
  • DPAK 13; M14x1.5 (external thread)
  • DPAK 14; M8x1 (external thread, angle adapter)
  • DPAK 21; M10x1 (internal thread)
• Ships complete in a rugged plastic case

Equipment

• ET 366 (121382) Extension hose 3.00 m long, fuel resistant, coupling connection on both sides (for testing the fuel pressure while driving)
• For further adapters see "DPAK adapter list"
